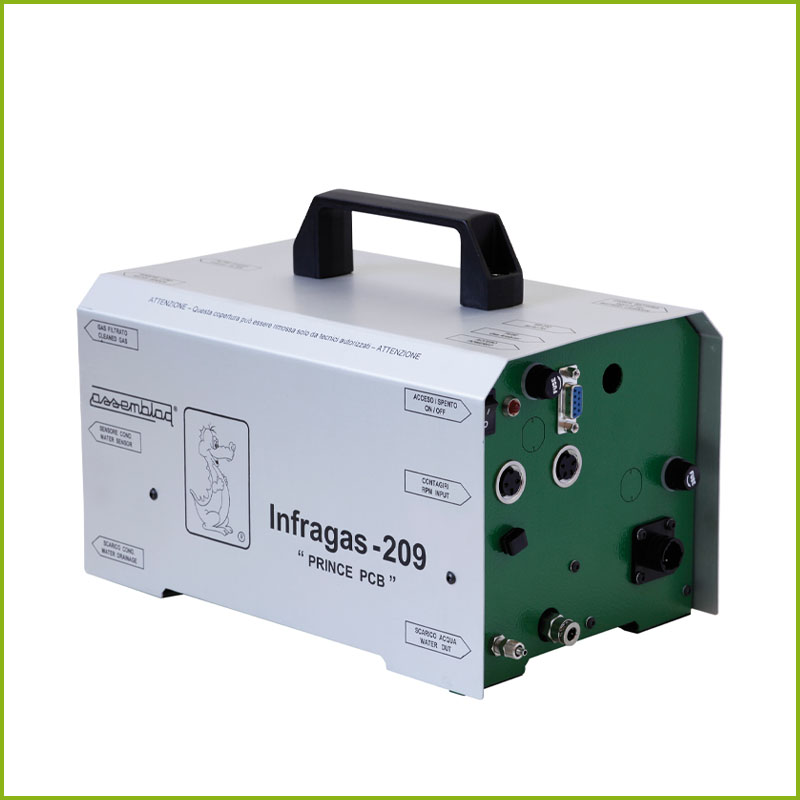

INFRAGAS-209

Heavy-duty,  battery-operated, Exhaust Gas Analyzer Module

Available as 4-gas (CO, CO2, HC and O2) and 5-gas (CO, CO2, HC, O2 and NOx) version.

Suitable for testing emissions of Otto-cycle engine-equipped vehicles of any kind, recommended for intense use as in statutory tests.

Powered by ASSEMBLAD INFRA-QUEEN infrared gas bench.

To be used in conjunction with external pc running ASSEMBLAD software or connected to ASSEMBLAD Smoke Meter for stand-alone combi gas/smoke emission test station.

Approved for statutory tests. Recommended for intensive use.



MAIN FEATURES:

  • Capable to run any emission test procedure on 2-and 4- stroke Otto-cycle engine using any kind of fuel (petrol, LPG, CNG)
  • Equipped with reinforced dual-stage filters for heavy-duty cycles.
  • ASSEMBLAD Service software available for remote monitoring.
  • Battery-operated, handy and portable.
  • Automatic zeroing function.
  • Barometric pressure compensation.
  • High-efficiency gas filtering system with WaterstoP® device.
  • Fast warm-up time (typical 2 minutes).
  • Easy and quick maintenance and calibration.
Category:
Technical Data
Measure Range   Ris.
CO
CO2
HC
O2
CO Corr.
Nox
Lambda
RPM
AFR (*)
0 ÷ 10 Vol%
0 ÷ 20 Vol%
0 ÷ 15000 ppm
0 ÷ 25 Vol%
0 ÷ 15 Vol%
0 ÷ 5000 ppm
0,5 ÷ 1,7
0 ÷ 9999 rpm
7 ÷ 23
0,001 Vol%
0,01 Vol%
1 ppm
0,01 Vol%
0,01 Vol%
1 ppm
0,001
1 rpm/1′
0,1
Power and size
Power supply 12V DC o 220V AC
Weight 6,6 Kg
Dimensions (LxHxP) 290x198x168mm



























Depliant

Download the Depliant
